Antennes

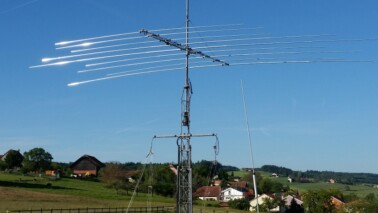

Wersa tower 20m
Rotor Tail Twister T2X
Beam Hy-gain 7el DB-1217 17 et 12m
Beam Hy-gain 7el TH7DX 20, 15 et 10m
Dipole MorGain 160 et 80m home made
Dipole Kelemen 160, 80 et 40m
GP bandes Wark 30, 17, 12m

Details of the antenna Morgain 160m / 80m.

Power Point without Balun to 16m from the ground. The end is 19m from the mast and 6m over the ground. The distance between the wires is 3cm. The wire are folded in three, on a 19m length of each side of the feed point, which represents a total length of 56m made.



Bird stop

General view

Frising
